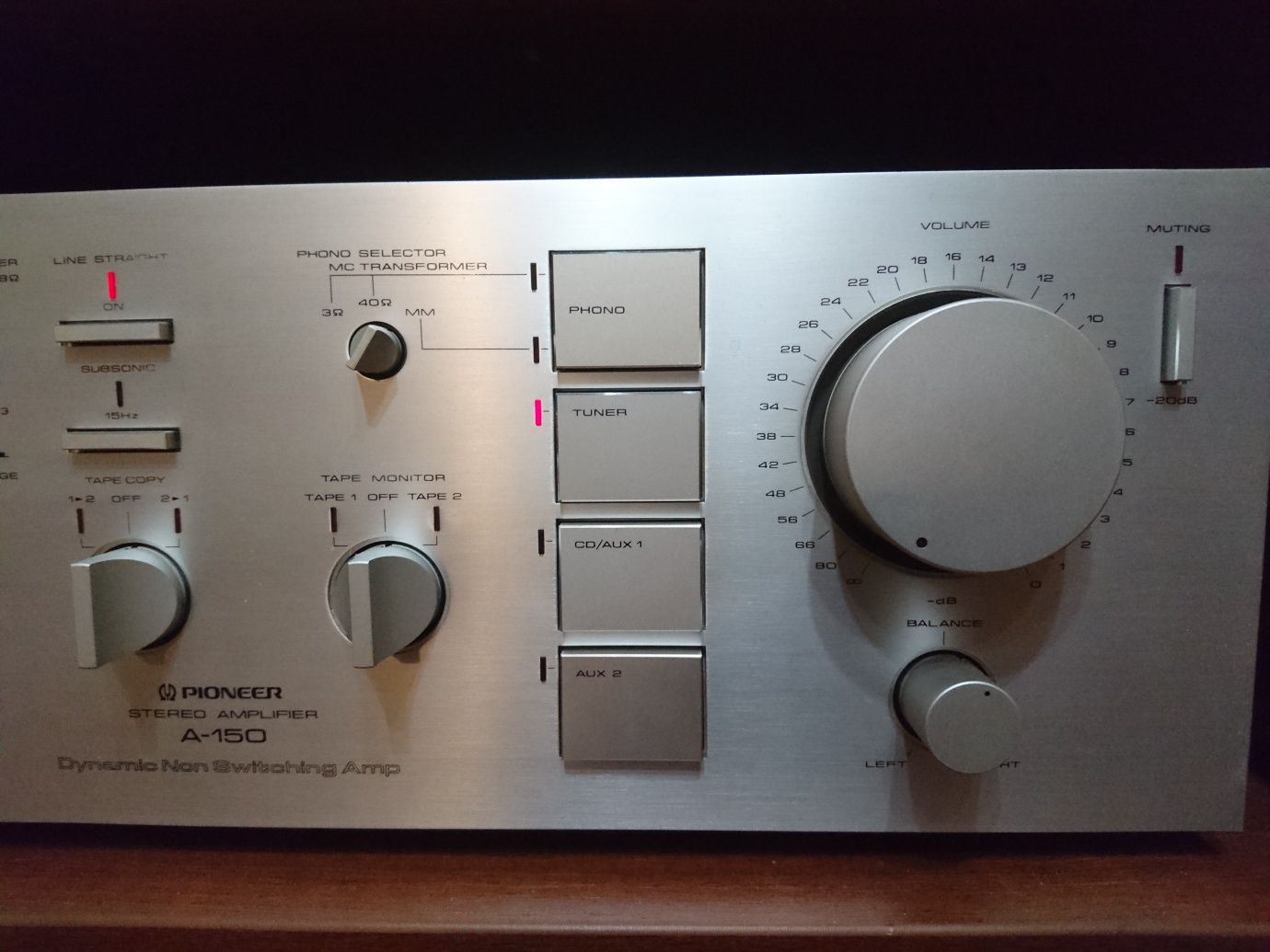

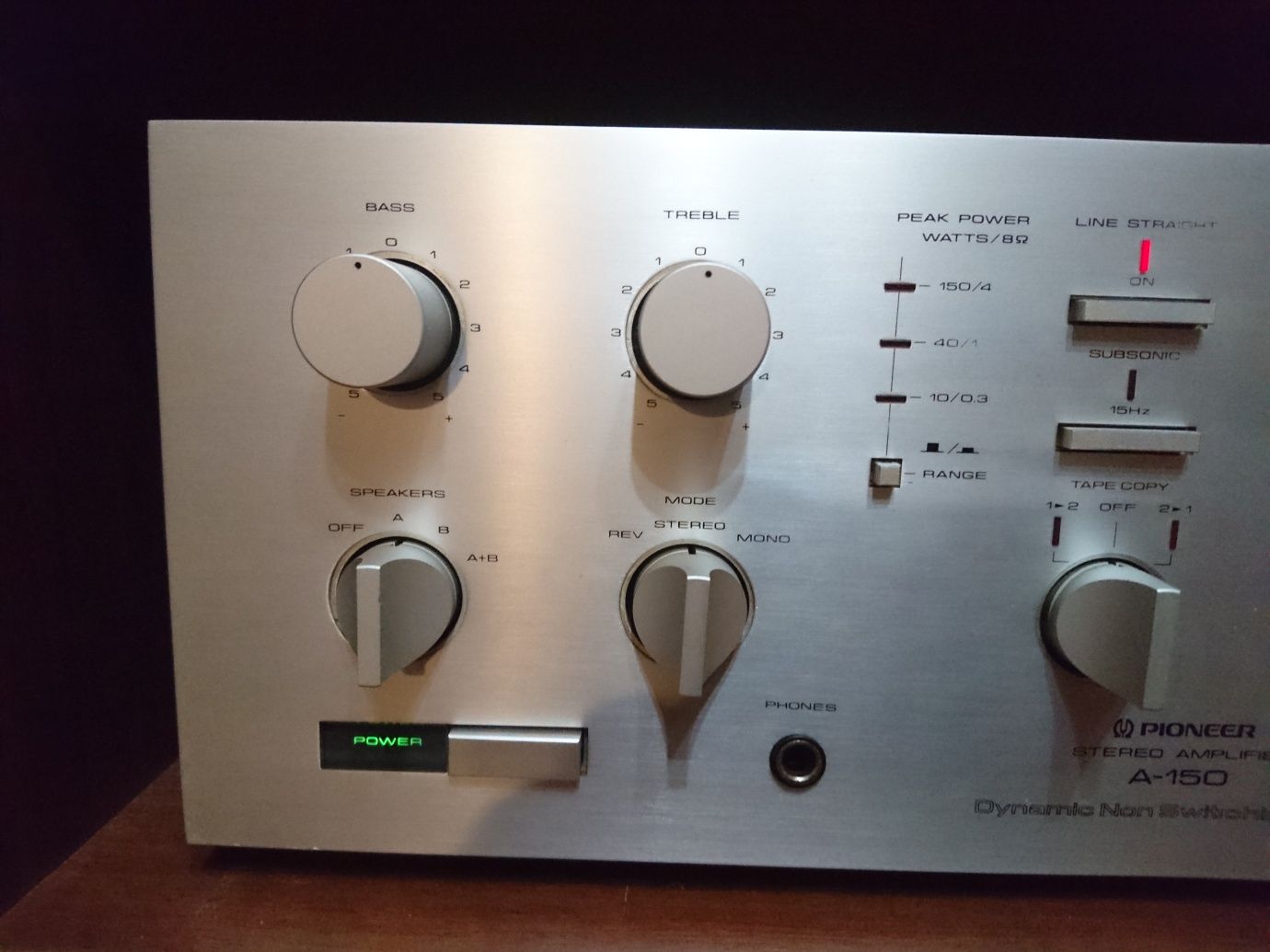

Интегральный усилитель мощности Pioneer A-150 1983 года выпуска. Made in Japan. Питание 100 В.
Type Pre-main amplifier
Effective power 150W + 150W (8 Ω, 20 Hz to 20 kHz, both channel drive)
Harmonic distortion factor (20 Hz to 20 kHz) 0.003% (at effective output)
Intermodulation distortion factor (50 hz : 7 khz = 4 : 1) 0.003% (at effective output)
Output bandwidth 5 Hz ~ 55 kHz (IHF, both channel drive, THD0.01%)
Output terminal Speaker (4 Ω ~ 16 Ω) : A, B, A + B
Tape Rec1, 2 : 150 mv
Damping factor 80 (20 Hz ~ 20 kHz, 8 Ω)
Input Sensitivity / Impedance Phono MM : 2.5mV/50k Ω
Phono MC : 0.15 mv, 0.25mV/3 Ω, 40 Ω
Tuner, CD/AUX, Tape Play1, 2 : 150mV/50k Ω
Phono maximum allowable input (1 kHz, THD0.003%) MM:300mV
MC:18mV
Frequency characteristic Phono MM : 20 Hz to 20 kHz ± 0.2 dB
Tuner, CD/AUX, Tape Play : 5 hz to 100 khz + 0 to 3 db
Signal-to-noise ratio
(IHF, A-network, short circuit) Phono MM:90dB
Phono MC:76dB
Tuner, CD/AUX, Tape Play : 110 dB
Tone control Bass : ± 10 dB (100 Hz)
Treble : ± 10 dB (10 kHz)
Filter Low : 15 Hz, 6dB/oct.
Power supply voltage 100 VAC, 50Hz/60Hz
Power consumption (Electrical Appliance and Material Control Law) 300W
External dimensions Width 420x Height 150x Depth 420 mm
Weight 16.8kg
